| 主要技術參數Main technical parameters | |||

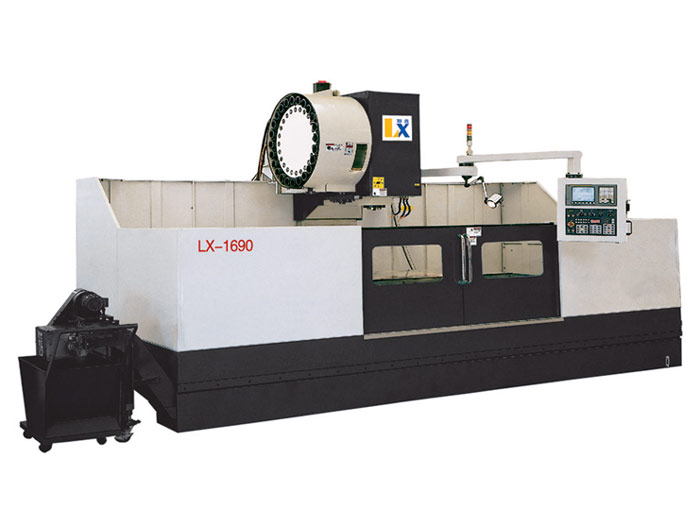

| 項目 Project | 單位Unit | LX-1580 | LX-1690 |
| 工作臺Table | |||
| 工作臺尺寸Table size (length x width) | mm | 800x1700 | 900x1800 |
| T型槽(寬x槽數) T- slot (width x slot number) | mm | 22x5 | 22x5 |
| 載重 maximum loading | kg | ≤1500 | ≤1600 |
| 工作臺面至地面距離 Distance from table surface to ground | mm | 1000 | 1050 |
| 行程 Travel | |||
| X軸行程Longitudinal travel | mm | 1500 | 1600 |
| Y軸行程 Lateral travel | mm | 800 | 900 |
| Z軸行程 Vertical travel | mm | 700 | 皮帶頭680/齒輪頭 650 Belt head680/ gear head650 |
| 主軸鼻端至工作臺面距離 Distance from spindle nose to table surface | mm | 170-870 | 皮帶頭160-840/齒輪頭350-1000 Belt head160-840/ gear head350-1000 |
| 主軸中心距至機柱滑道距離 Distance from spindle center to column slide | mm | 800 | 950 |
| 主軸 Spindle | |||
| 主軸錐度 Spindle taper |
 | BT50 | BT50 |
| 主軸轉速 Spindle speed | rpm | 6000 | 皮帶頭6000/齒輪頭4500 Belt head 6000/ gear head 4500 |
| 主軸檔數 Spindle number |
 | 1 | 皮帶頭1/齒輪頭2 Belt head 1/ gear head 2 |
| 主軸冷卻/潤滑方式 Spindle cooling / lubrication mode | 油冷/油脂潤滑 Oil / grease lubrication | C04PT | C04PT |
| 油壓箱/齒輪頭 Oil tank / gear head |
 |
 | 齒輪頭SHC-027X(60L) Gear head SHC-027X(60L) |
| 進給Feed | |||
| 切削進給 Cutting feed | mm/min | 1-10000 | 1-10000 |
| 快速進給 Rapid feed | m/min | 15/15/15 | 15/15/15 |
| 進給量 Minimum feed | mm | ≥0.001 | ≥0.001 |
| 馬達 Motor |
 | ||
| 主軸馬達 Spindle motor | kw | 15/18.5 | 皮帶頭18.5/22 齒輪頭15/18.5 Belt head 18.5/22 Gear head 15/18.5 |
| 三軸馬達X/Y/Z axis motor | kw | 7/7/7 | 7/7/7 |
| 冷卻泵浦 Coolant pump | Kw | 1.64 | 1.64 |
| 水箱容量 Water tank capacity | m3 | 0.62 | 0.38 |
| 刀庫Tool | |||
| 刀庫種類 Type of tool |
 | 門笠/圓盤 Armless/Arm type | 門笠/圓盤 Armless/Arm type |
| 刀庫規格 Tool specification |
 | BT50 | BT50 |
| 刀庫容量 Tool storage capacity |
 | 20/24 | 20/24 |
| 刀具直徑x長度 Max tool diameter x Length |
 | Φ≤110x300 | Φ≤110x300 |
| 安裝需求 Installation requirements | |||
| 電力容量 Power capacity | KVA | 30 | 35 |
| 氣壓壓力 Air pressure | Kg/cm2 | 5-7 | 5-7 |
| 空氣流量 Air flow | l/min | 100 | 100 |
| 占地空間 Floor space | mm | 4310x3100x3200 | 4900x3100x3350 |
| 凈重 Net weight | kg | 13000 | 16500 |
