| 主要技術參數Main technical parameters | |||

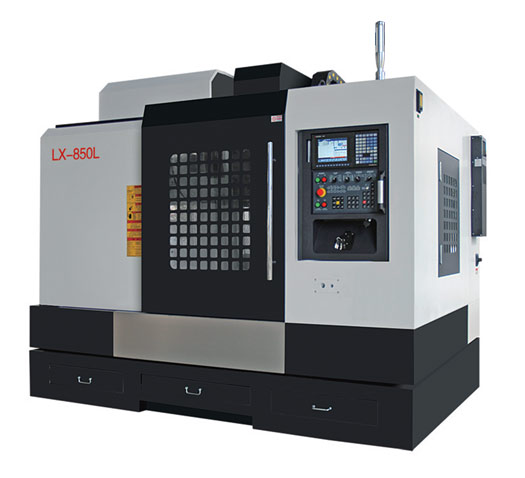

| 項目 Project | 單位 Unit | LX-850 | LX-850L |
| 工作臺Table | |||
| 工作臺尺寸Table size (length x width) | mm | 500x1000 | 500x1000 |
| T型槽(寬x槽數) T- slot (width x slot number) | mm | 18x5 | 18x5 |
| 載重 Maximum loading | kg | ≤600 | ≤600 |
| 工作臺面至地面距離 Distance from table surface to ground | mm | 830 | 830 |
| X軸行程Longitudinal travel | mm | 800 | 800 |
| Y軸行程 Lateral travel | mm | 500 | 500 |
| Z軸行程 Vertical travel | mm | 500 | 500 |
| 主軸鼻端至工作臺面距離 Distance from spindle nose to table surface | mm | 120-670 | 120-670 |
| 主軸中心距至機柱滑道距離 Distance from spindle center to column slide | mm | 550 | 550 |
| 主軸 Spindle | |||
| 主軸錐度 Spindle taper |
 | BT40 | BT40 |
| 主軸轉速 Spindle speed | rpm | 8000 | 8000 |
| 主軸檔數 Spindle number |
 | 1 | 1 |
| 主軸冷卻/潤滑方式 Spindle cooling / lubrication mode | 油冷/油脂潤滑 Oil / grease lubrication | C04PT | C04PT |
| 進給Feed | |||
| 切削進給 Cutting feed | mm/min | 1-10000 | 1-10000 |
| m/min | 15/15/15 | 15/15/15 | |
| 進給量 Minimum feed | mm | ≥0.001 | ≥0.001 |
| 馬達 Motor |
 | ||
| 主軸馬達 Spindle motor | kw | 7.5/11 | 7.5/11 |
| 三軸馬達X/Y/Z axis motor | kw | 2/2/2.5 | 2/2/2.5 |
| 冷卻泵浦 Coolant pump | Kw | 0.56 | 0.56 |
| 水箱容量 Water tank capacity | m3 | 0.24 | 0.24 |
| 刀庫Tool | |||
| 刀庫種類 Type of tool |
 | 門笠/圓盤 Armless/Arm type | 門笠/圓盤 Armless/Arm type |
| 刀庫規格 Tool specification |
 | BT40 | BT40 |
| 刀庫容量 Tool storage capacity |
 | 16/20/24 | 16/20/24 |
| 刀具直徑x長度 Max tool diameter x Length |
 | Φ≤90x300 | Φ≤90x300 |
| 安裝需求 Installation requirements | |||
| 電力容量 Power capacity | KVA | 15 | 15 |
| 氣壓壓力 Air pressure | kg/cm2 | 5-7 | 5-7 |
| 空氣流量 Air flow | l/min | 100 | 100 |
| 占地空間 Floor space | mm | 2750x2200x2700 | 2750x2200x2700 |
| 凈重 Net weight | kg | 5200 | 5000 |
